LK-DS-HES-C (ahaziri) Isi modul nke Radio Altimeter Simulator
- Ogologo ogologo simulated sara mbara (0 ruo 22000 n'elu);
- Ratio nkwụsịtụ ntụziaka dị elu
- Nzizi altimeter dị elu (≥1‰)
- Nhazi simulate nhọrọ (kwado karịa nhazi 210)
- Mgbanwe ntuziaka na ngbanwe akpaka;
- Miniaturization olu, ike ndakọrịta elektrọnik, ntụkwasị obi ọrụ dị elu;
- Ọnọdụ njikwa ọtụtụ: UART, LAN, wdg.
- Ọkọlọtọ nnwale dị iche iche n'elu ikpo okwu dị ka PXI, VXI, LXI.
Product Description
Usoro LK-DS-HES na-enye modul bụ isi nke nwere ike ịre ahịa dị ka akụrụngwa kwụ ọtọ ma ọ bụ tinye ya n'enweghị nsogbu n'ime mgbakọ dị elu dị mgbagwoju anya. Emebere mgbakọ ndị a site na nhazi nhazi, na-enye ha ohere ịkwado na njirisi arụmọrụ dị iche iche iji mejuo ụdị, dabara na ihe arụ ọrụ nke ndị ahịa anyị.
N'adịghị ka usoro ahịrị ahịrị igbu oge Surface Acoustic Wave (SAW), usoro LK-DS-HES na-anya isi n'ọtụtụ njiri mara elu. Ndị a na-agụnye ogologo oge ọrụ na-agbasawanye, nkwụsịtụ ntụzịaka pụrụ iche, ikike ijikwa akara ngosi ụzọ ụzọ atọ nke na-enweghị ike ịgụta ọnụ, ikike ịrụ ọrụ ogologo oge na-enweghị mkpa nhazigharị, yana nkwalite nkwalite ọrụ nke ntụkwasị obi.
Nka na ụzụ nkọwa
Njirimara Eletriki/Optical
| oke | Ụkpụrụ oke | unit | jaa | ||
| min | ahụkarị | Max | |||
| Oge ọtụtụ | 4 | - | 4.6 | GHz | |
| Nzaghachi nke ukwuu | - | ± 1.5 | ± 2 | dB | |
| Mepụta ịdị elu | 1 | - | 22000 | m | nhụbàràama |
| Mepụta izi ezi nke ịdị elu | 0.5% | 1% | - | - | |
| Ike itinye ikike kachasị elu | - | 2 | ahaziri | W | Ifufe na-aga n'ihu |
| - | 100 | ahaziri | W | Usu ife efe | |
| Nbanye VSWR | - | 1.3 | 1.5 | - | |
| Mmepụta VSWR | - | 1.3 | 1.5 | - | |
| Impedance | - | 50 | - | Ω | |
| Mee ka attenuation nwere ike gbanwee | - | 80 | ahaziri | dB | |
| oke nkwụsịtụ kwụ ọtọ | 60 | 80 | - | dbc | |
| mgbama ụzọ ụzọ atọ | Mba | ||||
| Operating okpomọkụ nso | -40 | - | + 70 | ℃ | Haziri ya na ọkwa dị mma |
| Oke okpomọkụ nchekwa | -55 | - | + 85 | ℃ | |
| Simulate ịdị elu vs. Okpomọkụ | - | - | 7 | ppm/℃ | |
| Mepụta izi ezi vs. Okpomọkụ | - | 3 | 6 | %/℃ | Enwere ike ịkwụ ụgwọ |

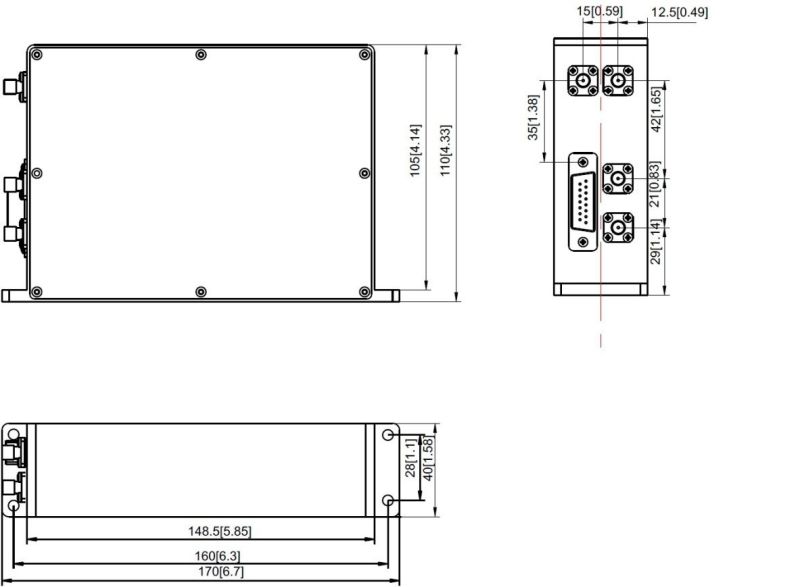

Ngwungwu na ntụtụ (Unit: mm[inch])
Igbe fiber optic
Igbe Microwave
Njikọ RF: SMA-K (ahaziri)
Njikọ DC: DE-9PS (ahaziri)
ngwa
Ebe: Radio altimeter maka radar, AEW, satellite, helikopta na wdg
Tụlee izi ezi nke altimeter
Tulee sesiticity nke nyocha na nsochi
Ntụle nke ọzọ oke
