Product Description

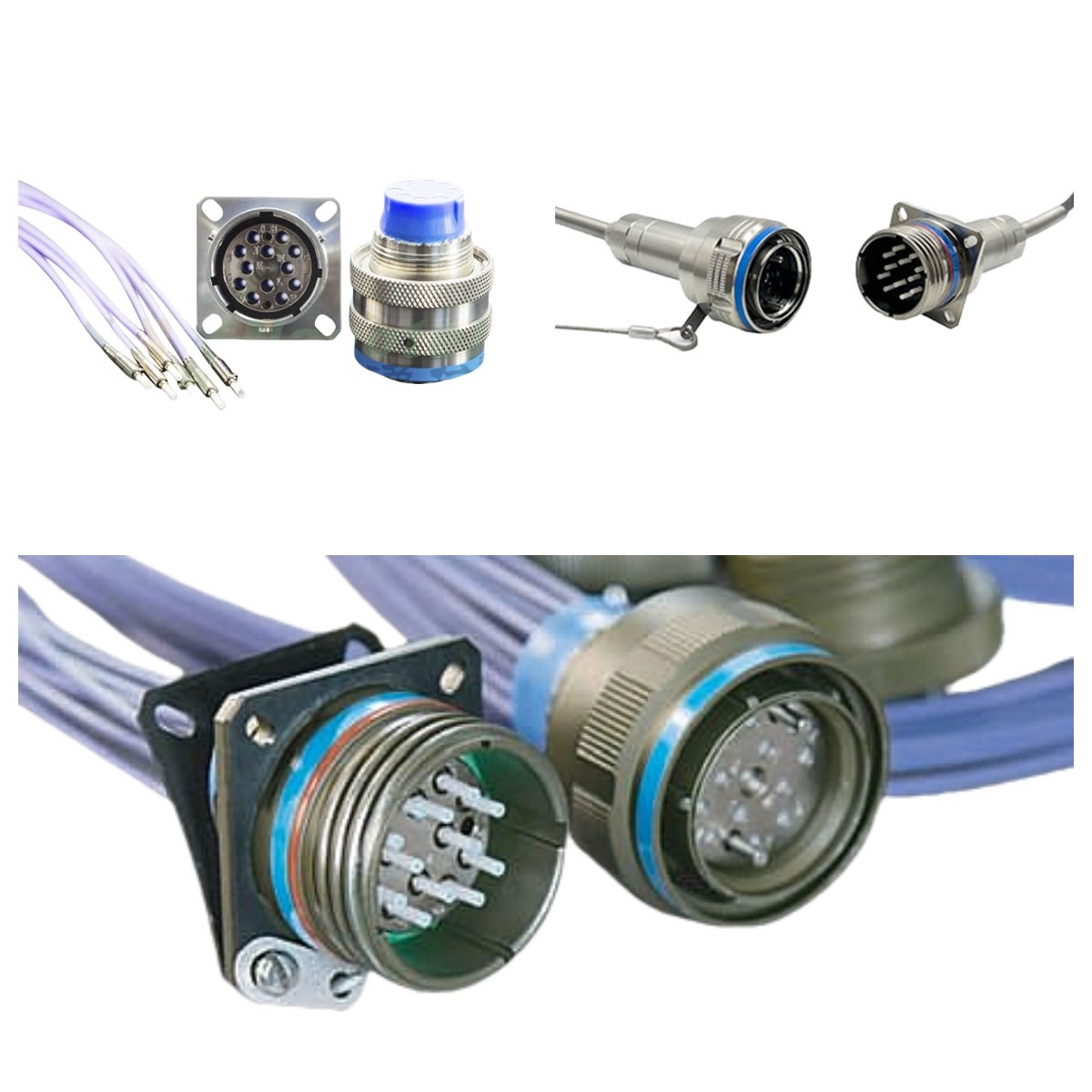

A high-reliability expanded beam fiber optic connector designed to meet GJB599B/MIL-DTL-38999 Series III interface requirements, with performance compliant with ARINC 801 standards, delivering exceptional optical performance in demanding aerospace and defense environments.
The non-contact expanded beam optical structure ensures stable transmission under dust, vibration, and repeated mating/unmating conditions. The ceramic O-ring sleeve provides superior port protection, significantly extending service life.
Key Atụmatụ
- GJB599B (MIL-DTL-38999 III) interface compatible, optical performance meets ARINC 801 standard
- Designed for multi-channel optical communication in aviation, electronics, and marine systems
- Beam-expanding lens design for true non-contact optical docking
- Closed O-ring ceramic sleeves greatly improve insertion/removal endurance
- Excellent dust resistance, suitable for harsh environments
- Easy termination and extraction using standard M81969/14-03 tools
Nka na ụzụ nkọwa
Arụmọrụ igwe
| oke | nkọwapụta |
| Ndụ n'ibu | 2000 mating cycles (plug/unplug) |
| Nsogbu Mmetụta | Peak acceleration: 2940 m/s²Duration: 3 msSpeed change: 5.61 m/s |
| Omume ọma jijiji | Frequency: 10 Hz – 2000 HzPower spectral density: 0.4 G²/HzAcceleration (RMS): 23.1 G |
| Nguzogide nkwụsị | ≥ 68 N (eriri Φ2 mm) |
Arụmọrụ gburugburu ebe obibi
| oke | nkọwapụta |
| operating okpomọkụ | −55 °C ruo +125 °C (dabere na eriri) |
| Nguzogide nnu alụlụ | K: 500 hF: 48 hW: 500 hMW: 192 h (acidic atmosphere) |
| Airtightness (airtight adapter socket) | Gas leakage rate ≤ 1 × 10⁻⁹ Pa`m³/sPressure differential: 1 atm |
Ngwa anya arụmọrụ
| oke | nkọwapụta |
| ntinye Loss | ≤ 0.6 dB @ 850 nm≤ 1.0 dB @ 1310 nm |
| nloghachi Loss | ≥ 20 dB @ 850 nm≥ 45 dB @ 1310 nm |
Njikọta Beam Agbasawanyere Emebere na Nhọrọ Ndị A Pụrụ Ịtụkwasị Obi Maka Akara Ndị Na-eduga n'Ụwa Nile
Anyị na-enye njikọ eriri optic nke a na-agbasawanye nke ọma nke dabara na mkpa ngwa gị kpọmkwem, ebe anyị na-enye nhọrọ ndị dị ọnụ ala ma dịkwa ntụkwasị obi maka ụdị mba ụwa dị iche iche. Site na imewe ruo na njikọta eriri, ndị otu injinia anyị na-ahụ na njikọta na-enweghị nsogbu na arụmọrụ a pụrụ ịtụkwasị obi na gburugburu ebe siri ike.
ngwa
Ụgbọelu na Ụgbọelu Avionics
A na-eji ya eme ihe n'usoro ụgbọelu ebe iguzogide ịma jijiji na nnyefe anya a pụrụ ịtụkwasị obi dị mkpa.
Ndị agha na nchekwa
Na-enye njikọ eriri kwụsiri ike maka nkwukọrịta atụmatụ n'ebe uzuzu na oke ujo dị.
Ndị Agha Mmiri na Ndị Agha Mmiri
Ọ dị mma maka sistemụ ụgbọ mmiri na nke dị n'èzí nke na-ekpuchi mmiri, mmiri nnu, na ọnọdụ siri ike.

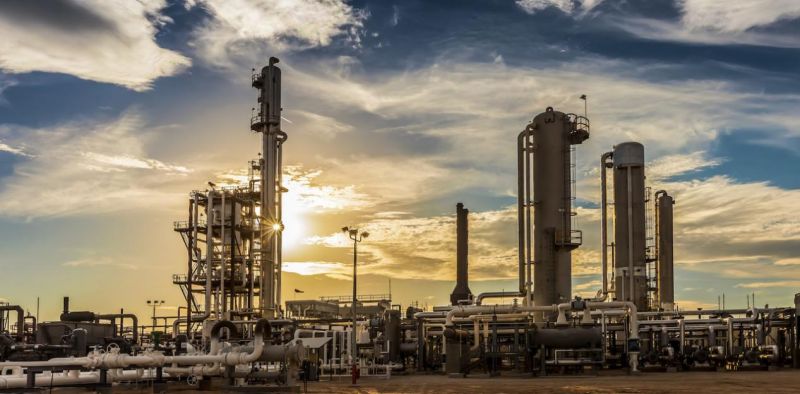

Gburugburu Ụlọ Ọrụ Mmepụta Ihe na Nsogbu
Na-ahụ na nnyefe data a pụrụ ịtụkwasị obi na ụlọ ọrụ mmepụta ihe, ebe a na-egwupụta ihe, na ngwa mmanụ na gas.
Mgbasa Ozi na Nkwukọrịta n'èzí
Dabara adaba maka mgbasa ozi n'èzí na netwọk ubi nke chọrọ njikọ eriri ngwa ngwa na ntụkwasị obi.
FAQ

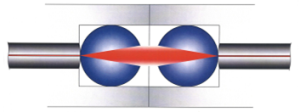

1. Gịnị bụ njikọ eriri optic gbasaara agbasa?
Njikọta ọkụ ndị a gbasaara agbasa na-eji anya anya agbasa ma gbakọta ìhè ahụ, na-enye ohere ka nnyefe anya na-anaghị emetụ aka. Nhazi a na-eme ka iguzogide uzuzu na mmetọ dịkwuo mma.
2. Kedu ụkpụrụ ndị njikọ gị na-akwado?
Enwere ike ịhazi njikọ anyị ka ha rube isi n'ụkpụrụ MIL-DTL-38999, MIL-DTL-83526, na ARINC 801.
3. Ị na-akwado nhazi?
Ee. Anyị nwere ike inye azịza ahaziri ahazi gụnyere ọnụọgụ eriri, njikọ njikọ, na njikọta eriri dịka ihe achọrọ maka ọrụ ahụ si dị.
4. Ngwaahịa gị ọ ga-anọchi ụdị ama ama mba ụwa niile?
Ee. E mere njikọ ọkụ anyị gbasaa iji nye arụmọrụ yiri nke ụdị ndị kacha ewu ewu n'ụwa niile, ebe ha na-enye nhazi dị mfe na ọnụahịa dị ọnụ ala.
5. Kedụ ụlọ ọrụ ndị na-eji njikọ osisi gbasaa?
A na-eji ha eme ihe n'ọtụtụ ebe n'ihe gbasara ụgbọelu, nchekwa, akụrụngwa ụlọ ọrụ mmepụta ihe, sistemụ nkwukọrịta n'èzí, na ngwa gburugburu ebe obibi siri ike.
6. Kedu uru nke njikọ osisi gbasaara?
Ike iguzogide uzuzu na mmetọ; Ndụ ogologo oge maka mkpakọrịta nwoke na nwanyị; Mbelata ihe achọrọ maka nhicha; Arụmọrụ a pụrụ ịtụkwasị obi na gburugburu ebe siri ike.
Ihe Mere Anyị Ji Na-arụkọ Ọrụ
Onye Mmepụta Njikọ Ọkpụkpọ Mgbasa Ọkachamara
Anyị na-enye njikọ eriri optic gbasaara nke a pụrụ ịtụkwasị obi nke e mere maka ngwa ndị siri ike dịka sistemụ ikuku, nchekwa, na ụlọ ọrụ mmepụta ihe.
Ndakọrịta Ụkpụrụ Mba Nile
E mere njikọ anyị ka ha rube isi n'ụkpụrụ ụlọ ọrụ dịka MIL-DTL-38999, MIL-DTL-83526, na ARINC 801, na-ahụ na ejikọtara ha na sistemụ ndị dị adị n'enweghị nsogbu.
Ike imewe omenala
Anyị na-akwado nhazi mgbanwe dịka nha shei, ọnụọgụ eriri, mgbakọ eriri, na ngwọta ngwakọ anya/ọkụ eletrik iji mezuo ihe achọrọ maka ọrụ.
Nhọrọ A Pụrụ Ịtụkwasị Obi Maka Ụdị Ụwa Nile
Ngwọta anyị na-enye ntụkwasị obi na arụmọrụ dị elu dịka ụdị njikọ mba ụwa na-eduga, na-enye ndị ahịa nhọrọ dị ọnụ ala na nke a pụrụ ịtụkwasị obi.
Ogo & ntụkwasị obi
Ngwaahịa niile na-anwale ule siri ike iji hụ na arụmọrụ anya kwụsiri ike na ndụ ọrụ ogologo oge na gburugburu ebe siri ike.
Ọrụ Ọkachamara
Anyị na-enye nkwado teknụzụ zuru oke site na nhọrọ njikọ na nhazi ruo na nchikọta eriri, ntinye, na nkwado injinia ogologo oge.
Request a quote today and find the right expanded beam connector for your project！
