LK-HSPD High Speed ​​InGaAs Photodetector

  • Bandwit sara mbara, Ọsọ dị elu
  • Bias-T webatara
  • DC jikọtara ọnụ
  • Hermetically mechiri emechi, njikọ SMA
  • Obere Ọchịchịrị dị ugbu a, oke mgbama na mkpọtụ dị elu.
  • Ihe Obere Ụdị.
NCHỌPỤTA

+ 86 29 88244373

Product Description

Emebere modul nchọpụta ọsọ ọsọ LK-HSPD ka ọ na-egbo ma dijitalụ na ojiji analọg. Ejiri modul a nwere InGaAs PIN photodiode nke nwere ogologo nzaghachi nzaghachi sitere na 1250 ruo 1650 nm, yana ngwa elektrọn dị mkpa dabara adaba.

LK-HSPD nwere ike ibuga bandwit nke 8 GHz, 12 GHz, 18 GHz, 22 GHz, na 30 GHz. Ọrụ nke modul na-adabere na ọkụ ọkụ nke + 3.3V ma ọ bụ + 5V, dabere na ụdị a kapịrị ọnụ. Emebere ya ka ọ rụọ ọrụ na eriri ọkọlọtọ otu ụdị nke 9/125μm. Mmepụta RF nwere njikọ dakọtara na SMA ma ọ bụ njikọ 2.92 mm, ha abụọ nwere egwuregwu impedance 50 ohm.

A na-emechi LK-HSPD n'ụzọ hermetically iji chekwaa ihe ndị metụtara gburugburu ebe obibi, si otú ahụ na-eme ka ọ dị ogologo ndụ na ntụkwasị obi ya. Ọ na-anya isi atụmatụ dị arọ, nke nwere oke ihe na-erughị gram 15, nke dị mma maka ngwa ebe ibu bụ ihe dị mkpa. A kwadoro modul a dịka mmachi nke ihe dị ize ndụ (RoHS) Ntuziaka 2.0, na-akwado nrube isi na ụkpụrụ gburugburu ebe obibi na nchekwa siri ike.

Nka na ụzụ nkọwa
Ọkachamara & Zuru oke oke
oke Sym. ụdị Rating unit
Nchekwa okpomọkụ nso TSTG -45 ～ +85 -55 ～ +100 ℃
Oke ọnọdụ okpomọkụ na-arụ ọrụ TC 25 -40 ~ +85 ℃
Voltaji nke ukwuu VR 3.3 ma ọ bụ 5 2.8 ruo 5.25 V
Ike ntinye anya Pin +3 + 10 dBm
Ike ngwa anya ọkụ PB - + 13 dBm
Ọnọdụ ire ere Tp 280 (10s) 330 (10s) ℃
Àgwà ọkụ eletrik / ngwa anya (TC = 22 ± 3 ℃)
oke Akara Ọnọdụ Ule Ụkpụrụ oke unit
Gburugburu Wavelength λ - 1000 ~ 1650 nm
Oke ugboro ugboro - - C-Band X-Band Ku-Band Ku+-Agba egwu K+-Agba egwu gbakwunyere -
Obere bandwit mgbama f-3dB TC= 22 ± 3 ℃ 0.1 ~ 8 0.3 ~ 12 0.8 ~ 18 2 ~ 22 2 ~ 30 0.3 ~ 18 GHz
Nzaghachi Re VR , Pin= 1mW λ = 1310nm ≥ 0.85 ≥ 0.85 ≥ 0.8 ≥ 0.75 ≥ 0.75 ≥ 0.75 A/W
λ = 1550nm ≥ 0.95 ≥ 0.95 ≥ 0.75 ≥ 0.70 ≥ 0.65 ≥ 0.70
Nnukwu flatness A TC = -40～+85 ℃ ≤ ± 1.5 ≤ ± 1.5 ≤ ± 1.5 ≤ ± 2 ≤ ± 2 ≤ ± 1.5 dB
Mmepụta VSWR VSWR - ≤ 2 ≤ 2 ≤ 2.5 ≤ 2.5 ≤ 2.5 ≤ 2.5 -
Voltaji nke ukwuu VR - + 3.3 + 3.3 + 3.3 + 3.3 +5 +5 V
RF njikọ - - sma sma sma 2.92mm 2.92mm sma -
Ike ngwa anya saturation Ps VR , λ = 1550nm
Emegharịrị AC		 +7 +7 +7 +7 +7 + 10 dBm
Ọchịchịrị Ugbu a Id VR ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 nA
Ike mmepụta RF saturation Ebu - -10 dBm
Mmetụta Mmepụta RL - 50 Ω

● Ọkpụkpọ nzaghachi a na-ahụkarị

(VR , λ=1550nm, TC =25 ºC, pin=0dBm)

(Fig.1 C-Band Photodetector nzaghachi ugboro ugboro)

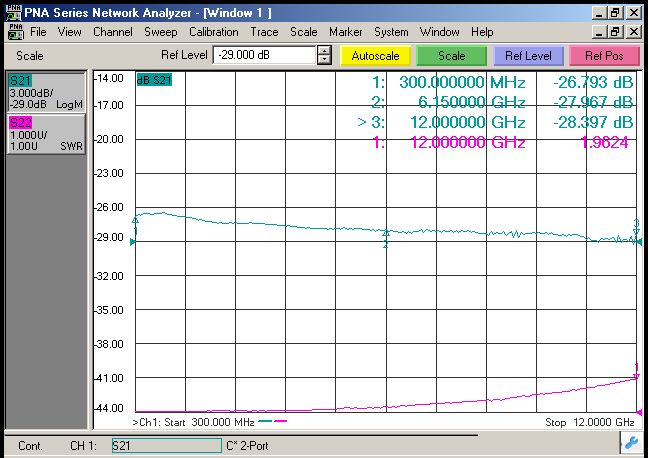

(Fig.2 X-Band Photodetector Nzaghachi ugboro ugboro)

(Fig.3 Ku-Band Photodetector Nzaghachi ugboro ugboro)

(Fig.4 K+ -Band Photodetector Response Frequency)

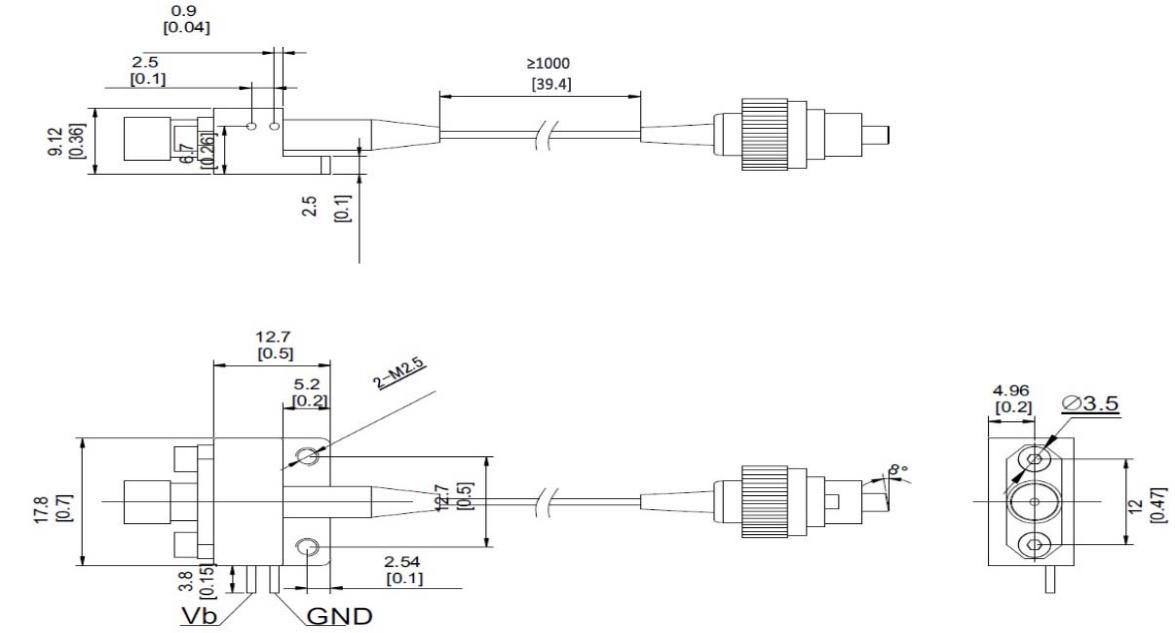

● Akụkụ na ntụtụ (Unit: mm[ inch])

Njikọ RF: SMA ma ọ bụ 2.92mm

● Ozi ịtụ

Mpempe akwụkwọ 1:

Usoro  Bandwit Analog
C 0.1 ~ 8GHz
X 0.3 ~ 12 GHz
Ku 0.8 ~ 18 GHz
Ku+ 2 ～ 22 GHz
K+ 2 ～ 30 GHz
Plus 0.3 ~ 18 GHz

Mpempe akwụkwọ 2:

Usoro Ihe njikọ Type jaa
N Enweghị njikọ Single-mode 9/125 μm eriri pigtail
A FC/APC
P FC / PC

● Akpachara anya

  • The eriri ekwe radius ọ dịghị ihe na-erughị 20mm maka izere eriri mebiri emebi.

  • Jide n'aka na ihu njikọ eriri eriri dị ọcha tupu ijikọ ya na opto-circuit.

  • A chọrọ nchekwa ESD kwesịrị ekwesị na nchekwa, njem na iji .

Enwere ike ịhazi fotodetector ọkọlọtọ anyị niile ka ọ bụrụ modul!
