LK-NYCMD CWDM Microwave DFB Laser Module
- Modulation Direct DFB Laser
- Oke-Dịnam-Oghere
- Ogologo ogologo: CWCM
- 18 GHz bandwit
- Ọnụ ala dị ugbu a
- Ike mmepụta dị elu
- 7pin ngwungwu urukurubụba nwere njikọ SMA
- Ọnọdụ okpomọkụ na-arụ ọrụ: -40 ruo 70 ℃
- Enwekwu ntụkwasị obi
Product Description
Laser LK-NYCMD bụ arụmọrụ dị elu, gbanwetụrụ ozugbo na-ekesa nzaghachi (DFB) laser emebere ka ọ dị mma na nkwukọrịta fiber optic linear maka ngwa chọrọ bandwidth sara mbara. Usoro usoro a na-arụ ọrụ dị ka ihe ngbanwe dị elu na sistemu eriri coaxial maka nnyefe nke akara ugboro ugboro na 12 GHz ma ọ bụ 18 GHz.
Site n'ichekwa iguzosi ike n'ezi ihe nke akara RF n'ụdị mbụ ya, usoro LK-NYCMD na-akwalite ntụkwasị obi nke netwọk nkwukọrịta ngwa ndakwa nri. N'ihi njirimara ndị a, usoro a na-emeziwanye ogo mgbama n'ofe ngwa dị iche iche, dị ka njikwa antenna dịpụrụ adịpụ, telemetry, nkesa oge na akara nrụtụ aka, yana nha na usoro ahịrị igbu oge.
LK-NYCMD na-agụnye isolator optical, thermoelectric cooler (TEC), thermistor, laser diode chip, na nyochaa photodiode, nke a na-emechi ha niile n'ime ngwugwu nru ububa 7-pin siri ike iji hụ na nchedo hermetic na ịnọgide na-arụ ọrụ kacha mma.
Nka na ụzụ nkọwa
| Oke oke zuru oke | ||||
|---|---|---|---|---|
| oke | Symbol | Min. | Max. | unit |
| Laser diode na-aga n'ihu ugbu a | If | - | 120 | mA |
| Laser diode reverse voltaji | V | - | 1 | V |
| Ike ihu | Pf | - | 20 | dBm |
| PD reverse voltaji | V | - | 15 | V |
| Na-aga n'ihu ugbu a (PD) | Im | - | 2 | mA |
| Operation okpomọkụ | To | -40 | + 70 | ° C |
| nchekwa okpomọkụ | Ts | -55 | + 85 | ° C |
| Ebe nchekwa iru iru ala | Sr | - | 85 | % |
| Nkọwapụta anya na eletriki (Tc=25°C) | |||||||
|---|---|---|---|---|---|---|---|
| oke | Symbol | Ọnọdụ Ule | min | ụdị | Max | nkeji | Note |
| Wavelength | λ | IF = MOP, T = TOP | 1270 | CW | 1390 | nm | nhọrọ |
| Frequency | - | Nhọrọ X | 0.3 | - | 12 | GHz | - |
| Nhọrọ Ku | 0.8 | - | 18 | ||||
| Ike mmepụta anya | P | IF=Iop | - | 10 | - | mW | 1 |
| Thershold ugbu a | Ith | Ebe: CWDM | - | 10 | - | mA | - |
| Arụ ọrụ ugbu a | Iop | Ebe: CWDM | - | 55 | 100 | mA | - |
| Voltage ọrụ | Vop | Ebe: CWDM | - | 1.5 | 2.5 | V | - |
| Mkpọda arụmọrụ | SE | - | 0.2 | - | - | W/A. | - |
| Oke nkwụsị nke akụkụ | SMSR | Ebe: CWDM, IF=Iop | 30 | - | - | dB | - |
| Mkpọtụ ike dị ukwuu | RIN | - | - | -130 | dB/Hz | - | |
| Bandwit (-3dB, I=60mA) | S21 | Nhọrọ X | - | 12 | - | GHz | - |
| Nhọrọ Ku | - | 18 | - | ||||
| Laghachi ọnwụ | VSWR | Nhọrọ X | - | - | 2 | dB | - |
| Nhọrọ Ku | - | - | 2.2 | ||||
| Ntinye 1 dB mkpakọ | 15 | - | - | dBm | - | ||
| Thermistor Nguzogide | Rth | @25C | - | 10 | - | Kohm | - |
| TEC ugbu a | It | - | - | - | 1.2 | A | 2 |
| Ọnụ ego TEC | Vt | - | - | 2.5 | V | 2 | |
| Ike (PD) | Ct | - | - | 20 | pF | - | |
| Nleba anya ugbu a | Im | - | 0.10 | - | 2.0 | mA | - |
| Ugbu a gbara ọchịchịrị (PD) | Id | - | - | 50 | nA | - | |
Notes:Ihe mgbawa laser niile na-abịa site na wafers enwetara asambodo site na iji ọtụtụ ngwaọrụ na-anọchite anya nke ga-enweta mkpụrụ a na-anabata nke ọma maka ọkụ ọkụ.
1. Laser okpomọkụ setịpụrụ 25 ℃, eleghi anya ugbu a na 55mA
2. Ọrụ ikpe okpomọkụ -40 ~ 70 ℃
● Data a na-ahụkarị
(λ: CWDM, TC = 25 ℃)

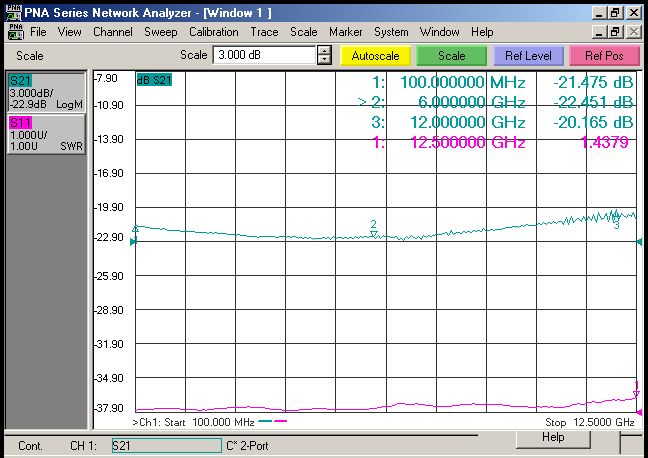

(Ihe osise 1 X-Bandi S11 na data S22)
(Foto 2 Ku-band S11 na S22 data)

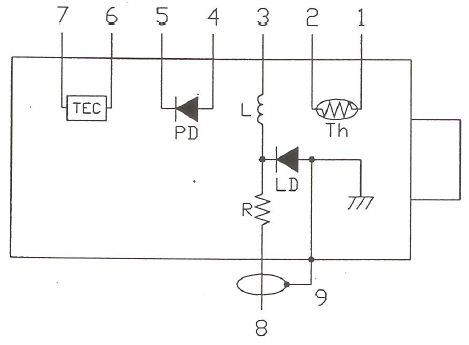

● Igwe ọkụ eletrik
| Ndu# | ọrụ |
| 1 | Onye na-ekpo ọkụ |
| 2 | Onye na-ekpo ọkụ |
| 3 | LD-(Agha) |
| 4 | PD+ |
| 5 | PD- |
| 6 | Igwe oyi + |
| 7 | oyi- |
| 8 | LD (RF) |
| 9 | Ground |
● Eserese ndepụta (Nkeji: mm)
Njikọ RF: SMA

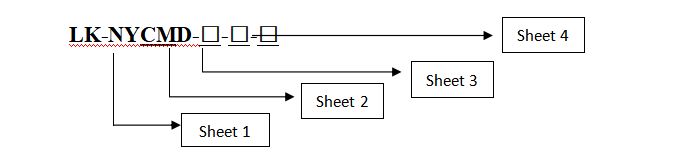

● Ozi ịtụ
Mpempe akwụkwọ 1:
| Usoro | Ogologo ogologo ogologo |
| CM | CWDM Coarse Wavelength Division Multiplexer 7PIN ngwungwu urukurubụba |
Mpempe akwụkwọ 2:
| Usoro | Bandwit Analog |
| X | 0.1 ~ 12 GHz |
| Ku | 1 ruo 18 GHz |
Mpempe akwụkwọ 3:
| Usoro | W1 | W2 | W3 | W4 | W5 | W6 | W7 |
| Ogologo (nm) | 1270 | 1290 | 1310 | 1330 | 1350 | 1370 | 1390 |
Mpempe akwụkwọ 4:
| Usoro | Ihe njikọ Type | jaa |
| A | FC/APC | Single-mode 9/125 μm eriri pigtail, 0.9mm, 1m ogologo |
| S | SC/APC | |
| N | Enweghị njikọ |
● Akpachara anya
Radius na-ehulata eriri adịghị ihe na-erughị 20 mm maka ịzere eriri mebiri emebi.
Jide n'aka na ihu njikọ eriri eriri dị ọcha tupu ijikọ ya na opto-circuit.
A chọrọ nchekwa ESD kwesịrị ekwesị na nchekwa, njem na iji.
ngwa
Nkwukọrịta data dị elu
Mwepụ nke antenna
Cellular na PCS netwọk
Analog RF njikọ nnyefe
Nkwukọrịta ndị agha
Ndepụta, Telemetry, na njikwa
Sistemụ telemetry
Usoro agha na nchekwa
nju
